Automatic Power Factor Controller

<< Index |  < Page 10 | Page 12 >

True RMS Power Factor Control System Controller Features

1. Capacitor Switching basedon KVAR Step Size.
2. KW, KVAR, KVA, Voltage,Amperage & P.F. Displays.
3. Power Factor Alarm.
4. Loss in Capacitor Step Alarm.
5. Defective Capacitor Step Alarm.
6. Harmonic Overload Alarm.
7. Fault Signaling Contacts.

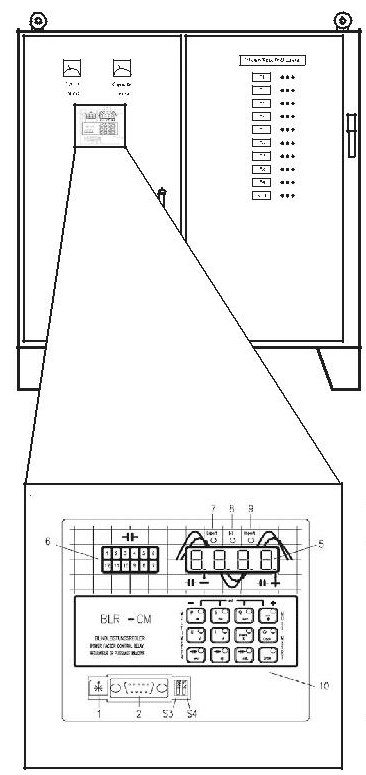

Control Panel Operation

1. Function Switch
2. RS-232 Port
3. (S3) Relay Alarm Signal Coding Switch
4. (S4) Harmonic Alarm Coding Switch
5. Digital Display
6. Energized Step Indicators
7. Export Power Indicator
8. Tariff Change-Over Indicator
9. Import Power Indicator
10. Foil Tab Keyboard
